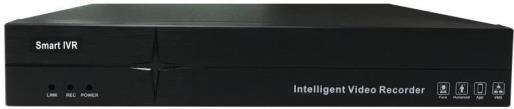

BUZE-1825 - 10 CHANNEL NVR

Download

Features

  • Support H265,H264,H265+ compression format
  • Support synchronized recording, remote view, backup recording in MP4 format, mobile view
  • Support 1 VGA 1 HDMI
  • Support preview image and playback image electronic amplification.
  • Support RTSP,GB28181,ONVIF protocol
  • Support HTTP,RTMP
  • Support alarm capture, send alarm information by email
  • Support DDNS,UPNP,NTP,P2P...etc
  • Support WEB, mobile view, IMS surveillance.
  • Support Human Detection.
  • Support channel tour round grouping
  • Support network inspection‐network traffic monitor, ether‐detect packet,network diagnosis..etc.
  • Support max 4CH 720P playback.
  • Support HTML5 remote login operation.
  • Support to add IPC manually or automatically in LAN.
  • Support to upgrade IPC online and by memory.
  • Support to maintain IPC under private protocol, including restore, restart, enable or disable all network function.
  • Support disconnected network supplement function, optimize bandwidth incoming up to 40
Operating System Embedded Linux
User Interface GUI
Video Compression H.264/H.265/H.265+
Video in 10 ch 720P/960P/1080P/3MP/4MP/5MP
Network Bandwidth 40 Mbps incoming / total throughput 80 Mbps
HDMI output 1 channel, HDMI interface; Resolution: 720P(1280×720), 1080P(1920×1080)
VGA output 1 channel, VGA interface; resolution: 1920 x1080, 800×600, 1024×768, 1280x720, 1280×1024,
Audio output supports HDMI audio output
Motion Detection 10 channel
Display Split 16CHxD1/9CHxD1/4CHxD1/1CHx1080P/ 1CHx3MP/1CHx4MP/1CHx5MP
Record and Playback Up to 10 ch and 4 CH Playback (1CH 5MP/4CH 1920*1080）
Remote Sync Playback Yes
Search Mode ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions Play, Pause, Stop, Rewind, Fast Play, Slow Play, Digital Zoom
Stream type Audio and video stream/video stream, support variable stream (VBR)/fixed stream (CBR)
Video Frames PAL: 30 fps；NTSC :60 fps
Video Bitrate 256 Kbps -- 4.0Mbps x 10 CH
Duel stream Support
Audio Compression G.711
Backup USB Backup & Internet Backup
Recording Mode Manual, Schelude (Reguler/Continuous), MD,Alarm, Stop
Search Mode Time/Date, Alarm, MD &Exact Search (accurate & Second), Smart Search
Equipment Control mouse (IR remote control not support)
Alaram and Alerts By Email
SATA 1 SATA
Capacity 8TB Max
Network Interface RJ45 10M / 100M , RJ45
Network Users 4 main stream users or 8 sub stream users
Internet Protocol HHTP/IPv4/DDNS/TCP/IP/UPNP/SNMP/NTP/SADP/SMTP/PPPoE/DHCP
USB Interface 2 USB 2.0 (upgrading backup and mouse）
Accessibility Support, Android/IPhone/Windows Pc, Web Browser Microsoft Edge, Firefox, Chrome (Under Windows System)
Cloud Support(P2P) Yes
Compatibility Support N1 & Onvif 2.4 IPCs
Protocol TCP/IP,HTTP,NTP,DHCP,UDP,SMTP,DDNS,DNS,PPPoE,P2P
Working temperature — 10℃---- 55℃
Power DC12V/3.0A
Power Consumption ≤15W
